FX501 Phenolic Fiberglass is a high-performance composite material consisting of phenolic resin and glass fibers. This material combines the heat and corrosion resistance of phenolic resins with the strength and rigidity of glass fibers, making it widely used in a variety of fields such as aerospace, automotive, and electronics. The molding method is the key to realizing the properties of this material, and the compression molding process is widely used because of its high efficiency and precision.

Compression Molding Process

Compression molding, also known as molding, is a process in which pre-heated, softened phenolic fiberglass material is placed in a mold, heated and pressurized to form and cure. This process ensures the dimensional accuracy and shape stability of the product while improving production efficiency.

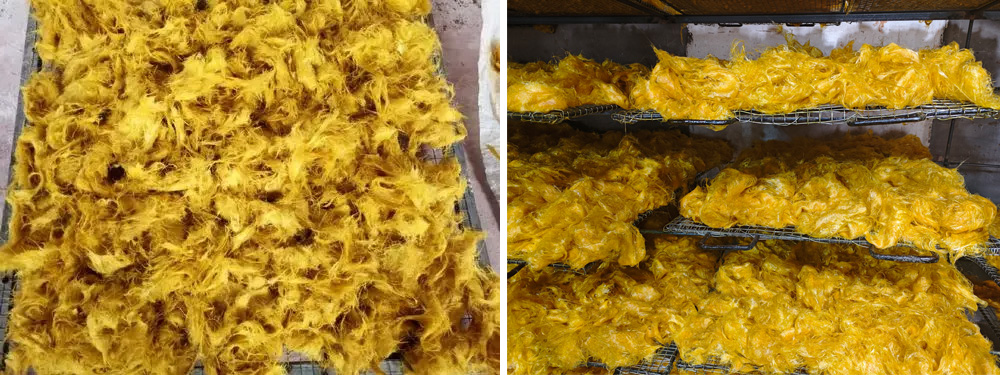

1. Material Preparation: First of all, FX501 phenolic fiberglass materials need to be prepared. These materials are usually in the form of flakes, granules or powder and need to be selected and proportioned according to the product requirements. At the same time, the integrity and cleanliness of the mold is checked to ensure that no impurities are introduced during the molding process.

2. Material Preheating: Place the FX501 phenolic fiberglass material into the preheating equipment for preheating. The preheating temperature and time need to be precisely controlled according to the nature of the material and the requirements of the product to ensure that the material reaches the appropriate softening and fluidity before being put into the mold.

3. Molding operation: The preheated material is quickly placed into the preheated mold, and then the mold is closed and pressure is applied. Pressure and temperature control are critical in this process as they directly affect the density, strength and appearance of the product. With the continuous action of temperature and pressure, the material gradually cures and molds.

4. Cooling and demolding: After the desired molding time has been reached, the temperature of the mold is reduced and cooled. A certain amount of pressure needs to be maintained during the cooling process to prevent the product from deforming. After cooling, open the mold and remove the molded product.

5. Post-processing and inspection: Carry out necessary post-processing on the molded products, such as cutting and grinding. Finally, quality inspection is carried out to ensure that the products meet the design requirements and performance standards.

Factors affecting the quality of molding

In the compression molding process of FX501 phenolic glass fibers, parameters such as temperature, pressure, and time have a critical impact on product quality. Too low a temperature may cause the material to fail to soften and flow sufficiently, resulting in voids or defects within the product; too high a temperature may cause the material to decompose or generate excessive internal stresses. In addition, the amount of pressure and the length of time it is applied will also affect the denseness and dimensional accuracy of the product. Therefore, these parameters need to be precisely controlled during actual operation to obtain the best product quality.

Frequently Asked Questions and Solutions

During the compression molding process of FX501 Phenolic Fiberglass, some problems may occur, such as product deformation, cracking, and internal voids. These problems are usually related to improper control of parameters such as temperature, pressure and time. In order to solve these problems, the following measures can be taken: optimization of molding process parameters, improvement of mold design, and improvement of material quality. At the same time, regular maintenance and repair of equipment is also the key to ensure the quality of molding.

Conclusion: The compression molding process of FX501 phenolic glass fiber is an efficient and precise molding method, which can ensure the dimensional accuracy, shape stability and excellent performance of the products. In the actual operation, parameters such as temperature, pressure and time need to be strictly controlled to obtain the best molding results. At the same time, the possible problems to take appropriate measures to ensure the smooth progress of the molding process and the stable improvement of product quality.
