NAME:Assembled roving for gypsum

Number:
  • BH-514 assembled roving is specially designed to reinforce for gypsum.
    It is chopped into a specific length, then mixed with gypsum, starch powder and accelerating agent to form a light weight construction boards,
    delivering good choppability, low static and high strength of end products.
Features




Product Description



Gypsum assembled roving is specially designed to reinforce for gypsum. It is chopped into a specific length, then mixed with gypsum, starch powder and accelerating agent to form a light weight construction boards.

Product Features:

1) Good choppability

2) Low static

3) High strength of end products

Product Information
Item Linear Density Resin Compatibility Features End Use
BHG-01A 2400 / good choppability, good dispersion,
good anti-static property
gypsum boards



Identification
Type of Glass E
Assembled Roving R
Filament Diameter, μm 15
Linear Density, tex 2400



Technical Parameters
Linear Density  (%) Moisture Content  (%) Size Content  (%) Stiffness (mm)
ISO1889 ISO3344 ISO1887 ISO3375
±5 ≤0.15 0.65±0.15 130±20




Shipping & Storage

Unless otherwise specified, the fiberglass products should be in dry, cool and moisture-proof area. The room temperature and humidity should be always maintained at 15℃~35℃ and 35%~65%. It is best if the price is used within 12 months after production date. The fiberglass products should remain in their original packaging until just prior to user.

To ensure safety and avoid damage to the product, the pallets not be stacked more than three layers high. When the pallets are stacked in 2 or 3 layers, special care should be taken to correctly and smoothly move the top pallet.

Packaging

The product can be packed on pallet or in small cardboard boxes.

Package height mm (in) 260(10) 260(10)
Package inside diameter mm(in) 100(4) 100(4)
Package outside diameter mm(in) 270(10.6) 310(12.2)
Package Weight kg(lb) 17(37.4) 23(50.7)



Number of layers 3 4 3 4
Number of doffs per layer 16 12
Number of doffs per pallet 48 64 36 48
Net Weight per pallet kg(lb) 816(1797.3) 1088(2396.5) 828(1825.4) 1104(2433.9)



Pallet Length mm(in) 1120(44) 1270(50)
Pallet Width mm(in) 1120(44) 960(37.8)
Pallet height mm(in) 940(37) 1180(46.5) 940(37) 1180(46.5)

                                 Assembled Roving-packing

LOADING

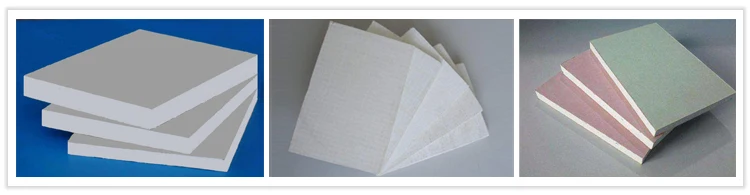

Application

To specially reinforce for gypsum.


FAQ
1.Moq:1000kgs
2.Delivery time:15days after confirm order
3.Payment term:T/T 30%  deposit in advance,70% balance before shipment date.
